3-Station Compressed Air Piping Kit
Create a cleaner compressed air distribution layout for multiple work areas with a 3-station piping kit. This setup is designed for shops, garages, service bays, maintenance teams, and small production spaces that need compressed air access in more than one location.
Instead of running long hoses across the floor, this prebuilt cart helps you load the key pipe, fittings, outlet stations, mounting clips, and compressor connection components needed for a three-drop air system.
Example layout shown. Customize quantities, pipe lengths, fittings, and outlet stations directly from the cart page.
What Is a 3-Station Compressed Air Piping Kit?
A 3-station compressed air piping kit is a multi-drop air distribution layout that connects one compressor to three dedicated outlet stations. This gives users access to compressed air from several work zones without relying on one long hose or constantly moving air lines from station to station.
Three Air Drops
Create dedicated compressed air access points for multiple workbenches, bays, machines, or tool areas.
Better Shop Flow
Reduce hose clutter and make it easier for teams to work in different parts of the shop.
Expandable Layout
Start with three stations and add more pipe runs or outlet drops as your air system grows.

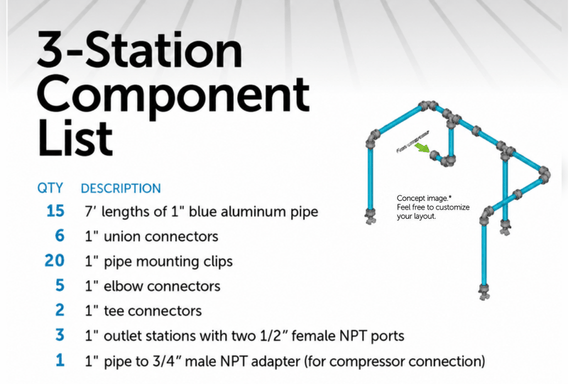

Included 3-Station Component List
This prebuilt cart is based on a common three-station compressed air layout. Your final design may vary depending on compressor placement, wall structure, ceiling height, pressure requirements, and how far apart each outlet station needs to be.
| Qty | Component | Purpose |
|---|---|---|
| 15 | 7' lengths of 1" blue aluminum pipe | Creates the main compressed air line and multiple vertical drops |
| 6 | 1" union connectors | Joins pipe sections together across longer runs |
| 20 | 1" pipe mounting clips | Secures the air piping to walls, beams, or approved mounting surfaces |
| 5 | 1" elbow connectors | Allows directional turns around walls, corners, or vertical drops |
| 2 | 1" tee connectors | Branches the main air line to feed additional outlet stations |
| 3 | 1" outlet stations with two 1/2" female NPT ports | Provides three dedicated compressed air access points |
| 1 | 1" pipe to 3/4" male NPT adapter | Connects the piping system to the compressor outlet |
Best Uses for a 3-Station Air Piping Layout
Automotive Shops
Run compressed air to multiple service bays, tire stations, lifts, or tool areas without relying on one shared hose.
Woodworking & Fabrication
Add air access near benches, finishing areas, sanders, nailers, or small production equipment.
Maintenance Areas
Support technicians across several work zones with fixed outlet stations and a more organized air line layout.
Can One Compressor Supply Three Air Drops?
Yes, one properly sized compressor can supply three air drops when the system is designed around total airflow demand. The most important factors are compressor CFM, operating pressure, pipe diameter, run length, and how many tools may run at the same time.
A three-station layout does not automatically mean all stations will be used simultaneously. For many shops, the benefit is better access and cleaner routing. For heavier tool use, confirm the total CFM requirement before building the system.
Compare Other AIRpipe Kit Layouts
Not sure if a 3-station layout is the right fit? Compare these other AIRpipe compressed air piping kits designed for garages, workshops, service bays, and growing shop environments.
Why Use Aluminum Air Pipe for a Multi-Station System?
Aluminum compressed air piping is commonly used for shop air distribution because it is lightweight, corrosion resistant, modular, and easier to modify than traditional threaded pipe systems. For a multi-station layout, this helps reduce installation complexity while making future changes easier.
Recommended Air Compressors for a 3-Station Garage System
A 3-station compressed air layout works well for garages, hobby shops, automotive projects, woodworking areas, and small workshops. These portable compressors are better aligned with garage and DIY use than larger stationary shop compressors.
Quincy 2 HP 24 Gallon Horizontal Portable
Horizontal portable compressor with wheels and handle for small shops, home garages, and DIY use.
Quincy 2 HP 24 Gallon Vertical Portable
115V single-phase portable compressor for garage, shop, and light-duty compressed air needs.
Quincy Wheelbarrow PAT38 Honda GX160
Gas-powered wheelbarrow compressor for mobile work, detached garages, farms, job sites, and contractor use.
Related Air Piping Resources
Use these resources to plan pipe sizing, compressor capacity, system layout, and future compressed air expansion.
Frequently Asked Questions
A 3-station compressed air piping kit is a multi-drop layout that distributes compressed air from one compressor to three separate outlet stations.
Yes, but performance depends on compressor size, total CFM demand, pipe layout, and the tools being used at each station.
Maximum run distance depends on pipe diameter, compressor capacity, airflow demand, and acceptable pressure drop. Larger pipe diameters can help reduce restriction over longer runs.
Aluminum compressed air piping is lightweight, corrosion resistant, easier to install, and easier to modify than many traditional threaded black iron pipe systems.
Yes. Modular aluminum compressed air piping can support additional pipe runs, outlet stations, fittings, and future layout changes.
The right compressor size depends on total CFM demand, pressure requirements, duty cycle, and whether multiple tools will run at the same time.
