Description

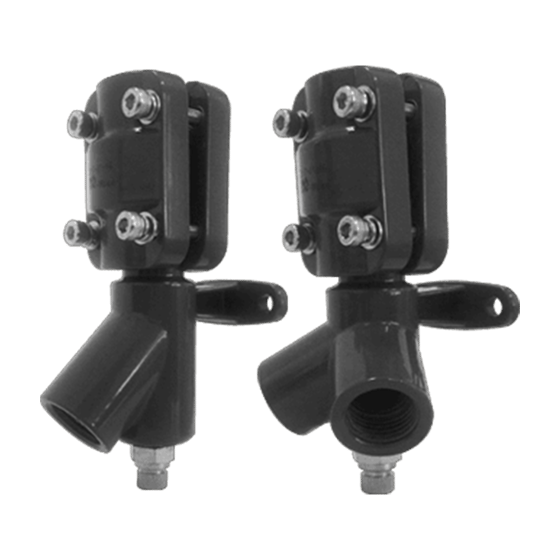

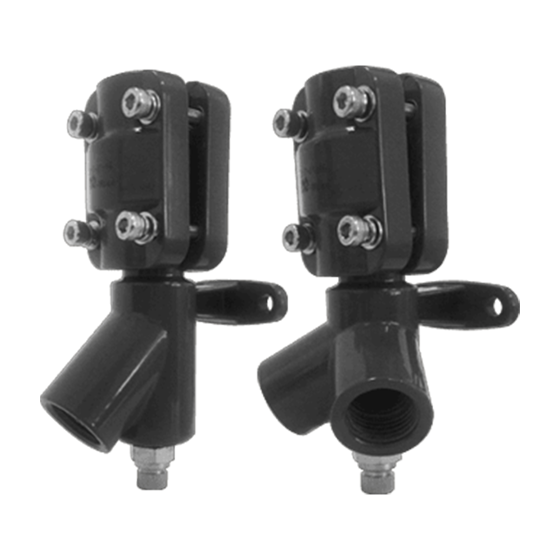

The AIRpipe One & Two Port Angled Wall Brackets are designed to provide a secure, corrosion-resistant mounting solution for aluminum compressed air piping systems. Made from lightweight aluminum, these angled brackets ensure stable pipe alignment, leak-free performance, and a professional system layout for both industrial and commercial applications.
Available in one-port and two-port variations, these wall brackets allow for flexible installation options when adding drops, outlets, or expansion points. Each port features a 1/2" Female NPT connection, making them ideal for powering air tools, equipment, or future branch lines.
With their quick-install design, the brackets mount easily to walls or structures, ensuring fast setup, minimal downtime, and long-term durability under pressures up to 300 PSI.
Key Features
Available in One-Port and Two-Port angled configurations
Compatible sizes: 3/4" (20mm) pipe, 1" (25mm) pipe
Each outlet features a 1/2" Female NPT connection
Corrosion-resistant aluminum construction
Provides a secure, stable mount for compressed air piping
Quick-install, reusable design for fast setup
Handles pressures of 188 PSI, 232 PSI, 300 PSI
ISO 8573-1 certified for reliability and compliance
Temperature range: -4°F to +176°F
Manufactured from non-flammable materials
Perfect For
Industrial and commercial compressed air systems
Workshops, manufacturing plants, and assembly lines
Adding secure drop points or outlets
Phased system expansions or retrofits
Maintaining professional, organized pipe layouts
