Choosing the right size of air compressor is essential for efficient and effective operation. The size directly affects the compressor's performance, reliability, and suitability for specific applications. Key factors to consider include airflow, pressure, and the requirements of your tools or machinery. Here are several important elements to consider when determining the appropriate size of air compressor for your needs:
Understanding Air Compressor Measurements: Familiarize yourself with key measurements such as PSI (pounds per square inch), CFM (cubic feet per minute), and HP (horsepower).
Identifying Types of Air Compressors: Consider which compressor best fits your tasks. Options include reciprocating and rotary models, each designed for different purposes.
Location Requirements: Consider the available space for your air compressor and how you plan to install it, as this will affect whether you use a tank mount or a foot/base mount.

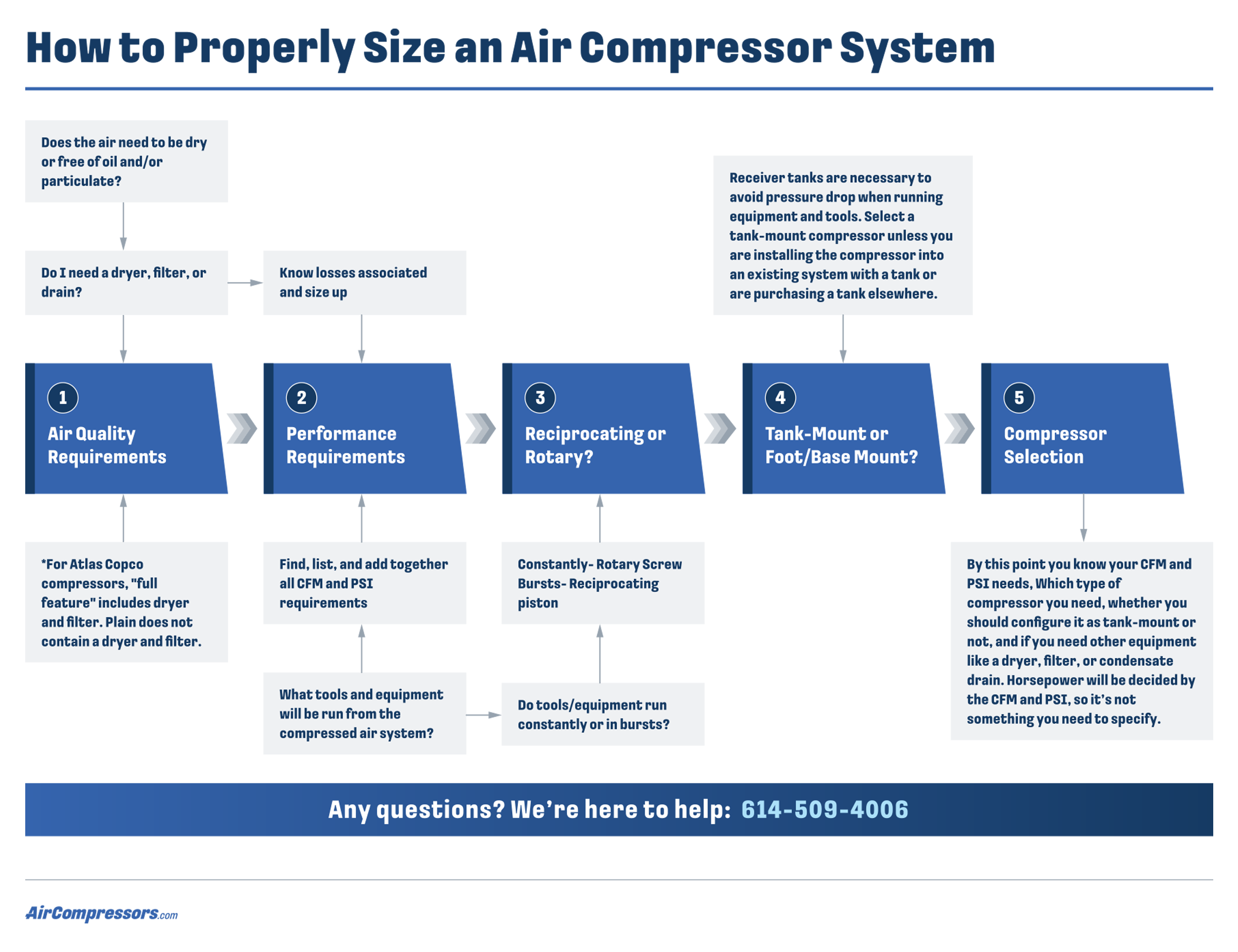

This guide considers these factors to help you select the ideal air compressor for your applications.
Air Compressor Measurements: PSI, CFM, & HP – What Do They Mean?
Several factors must be considered when selecting the right air compressor, including these three key performance measurements: PSI (pounds per square inch), CFM (cubic feet per minute), and HP (horsepower). These specifications indicate a machine's pressure, flow rate, and power capabilities. Understanding these primary measurements is essential, as they directly influence an air compressor's performance.
What is PSI in Air Compressors?
PSI measures the air pressure a compressor generates. It indicates the force exerted per square inch of space. This air pressure drives power in compressed air systems, and a unit's PSI determines the types of tools it can operate.
How PSI Impacts Performance
Higher PSI generates greater pressure, which is needed to power tools that require intense bursts of air. For example, a compressor with 120 PSI can power air tools more effectively than a unit with only 90 PSI.
What is CFM in Air Compressors?
CFM measures a compressor's airflow volume in 60 seconds, greatly impacting tool performance.
Why CFM is Important
CFM airflow volume is important because it controls how long a tool can continuously operate without losing power. Tools with higher CFM requirements will operate optimally only when paired with a compressor that meets or exceeds those airflow demands. Before deciding on which air compressor to buy, verify the CFM requirements of your equipment so that it runs properly.
What is HP in Air Compressors?
Horsepower (HP) measures the work capacity of the motor or engine that powers the air compressor. However, higher horsepower units don’t always equate to a more powerful compressor. CFM and PSI are more critical factors in determining the air compressor’s overall performance.
How HP Relates to CFM and PSI
CFM and PSI are crucial in determining the compressor’s ability to deliver air for specific tasks, while horsepower (HP) provides the energy needed to generate the required air pressure and volume. All three measurements must be considered together to ensure optimal performance.
Additionally, compressor horsepower ratings will vary depending on the unit’s size. Smaller compressors require lower ratings, whereas larger equipment requires more power. The horsepower rating generally increases with the compressor’s capacity to handle more demanding tasks.
Understanding Air Compressor Capacity and Flow Rate
| Applications | CFM | PSI | Air Tools | CFM | PSI | |
| Home Use | 1-2 | 70-90 | Airbrush | 0.5-1.5 | 20-30 | |
| Spray Gun | 4-8 | 30-50 | Nail Gun | 1-2 | 70-90 | |
| Spray Painting | 4-8 | 30-50 | Dental Equipment | 2-4 | 80-100 | |
| Sandblasting | 6-25 | 70-90 | Tire Inflator | 2-3 | 100-150 | |
| Various Power Tools | 3-10 | 90-120 | Impact Wrench | 3-5 | 90-100 | |
| HVAC Systems | 6-12 | 80-100 | Air Ratchet | 3-5 | 90-100 | |
| Refrigeration | 3-5 | 60-0 | Hammer Drill | 3-6 | 90-120 | |
| Automotive Assembly | 8-15 | 90-120 | Paint Sprayer | 6-7 | 30-50 | |
| Food and Beverage Packaging | 4-10 | 70-90 | Grinder | 5-8 | 90-120 |
When selecting an air compressor, it's important to understand the distinction between capacity and flow rate. The capacity of an air compressor refers to the total volume of air it can store, typically measured in gallons or liters.
On the other hand, the flow rate indicates how quickly the compressor can deliver air, usually measured in CFM. Both metrics will help you choose the correct size air compressor to meet the requirements of your tools and applications.
Understanding Your Losses Associated with a Dryer, Filter, or Drain to Determine Performance Requirements
Selecting the right air compressor and determining the appropriate size for your needs involves evaluating how dryers, filters, and drains impact overall performance and potential losses.
Below are the associated losses and explanations of why they occur, from the auto drain's functionality for proper operation to the effect of condensate drains on air system efficiency.
The auto-draining function is an absolute must for a refrigerated air dryer to work properly. If the drain does not open or function properly, liquid water will evaporate in the re-heater and pass downstream.
Excess liquid flowing downstream can harm compressed air equipment by overloading filters and dryers. While most water vapor is typically condensed and removed, leftover liquid can hinder performance and increase maintenance costs. Also, missing cross-connections or check valves can cause liquid to back into inactive compressors, leading to serious damage. Effective drainage of condensed fluids is essential to keeping systems operating efficiently. Solutions like float drains, timed solenoid valves, and actuated ball valves can help.
Condensate drains are needed for properly functioning compressed air systems. When a drain fails to remove all the collected condensate, oil and water can accumulate, which effects filter efficiency, causes carryover into the system, and increases the risk of freeze-up during winter.
No-loss drains efficiently remove condensate from compressed air systems while preserving compressed air. They're typically installed at key points like compressors, air dryers, filters, and storage tanks—wherever moisture may collect, allowing optimal system performance.
When choosing a system, it's important to consider contamination sensitivity, as obstructions can cause failures. Evaluating your application conditions and maintenance needs will help you make a better purchasing decision. Understanding environmental factors, drainage systems, and condensate composition is essential for the efficient operation of your compressed air system.
Identifying Types of Air Compressors: Piston vs. Rotary Screw Air Compressors
When choosing an air compressor, consider the type you need. The main types are piston (reciprocating) and rotary screw compressors, each with unique advantages. They vary in size, airflow, pressure, energy efficiency, noise levels, and maintenance requirements.
What Is a Piston (Reciprocating) Air Compressor?
A piston or reciprocating air compressor is the oldest and most common type of compressed air equipment. It uses displacement to increase air pressure in a confined chamber. Smaller than rotary screw compressors, piston compressors are suitable for tight spaces and can achieve high air pressures, reaching 200 PSI or more. However, they may produce pulsating airflow and have greater maintenance needs due to their moving parts.
What Is a Rotary Screw Air Compressor?
On the other hand, a rotary screw air compressor uses interlocking screws to compress air continuously, making for applications with longer service intervals. These larger compressors deliver smooth, consistent airflow at lower PSI levels and produce cleaner air. Maintenance is minimal, requiring only regular oil checks and changes at specified intervals.
Selecting Duty Cycle: Constant vs. Bursts
Understanding the duty cycle is essential for sizing your air compressor and assessing its applications. The duty cycle determines how much air the compressor can deliver over time. A 25% or 50% duty cycle compressor might not suffice if your needs are high during a shift despite an adequate CFM rating.
Constant air usage applications, like spray painting, require a higher duty cycle (close to 100%) to operate continuously. In contrast, applications with short bursts of air, such as blowing out dust or inflating tires, can function well with lower duty cycles (20-50%) since the compressor can cycle on and off.
Piston compressors are best for intermittent use, while rotary compressors can run continuously, making them suitable for high-production settings.
Assess the Placement of the Air Compressor
Are you considering using an air compressor for a specific purpose, such as a home shop or an industrial setting? Do you need it to be mobile, or can it be stationary? When sizing an air compressor, consider the installation location, available space, noise level requirements, potential for vibration, and mounting options.
A base-mounted compressor is an excellent choice for smaller spaces. It helps you maximize floor space while keeping noise levels low. If your air needs are occasional, a compact and quiet base-mounted compressor will meet your requirements perfectly. When quiet operation is a priority, look for a model with a lower decibel rating.
In contrast, a tank-mounted compressor is best if you have a larger area, as it provides ample air capacity and longer run times, meaning less frequent cycling. These compressors are well-suited for high-demand tasks but require more room and may be heavier and louder. For instance, investing in a larger tank-mounted compressor for busy automotive shops will give you the necessary power for demanding tools like impact wrenches.
